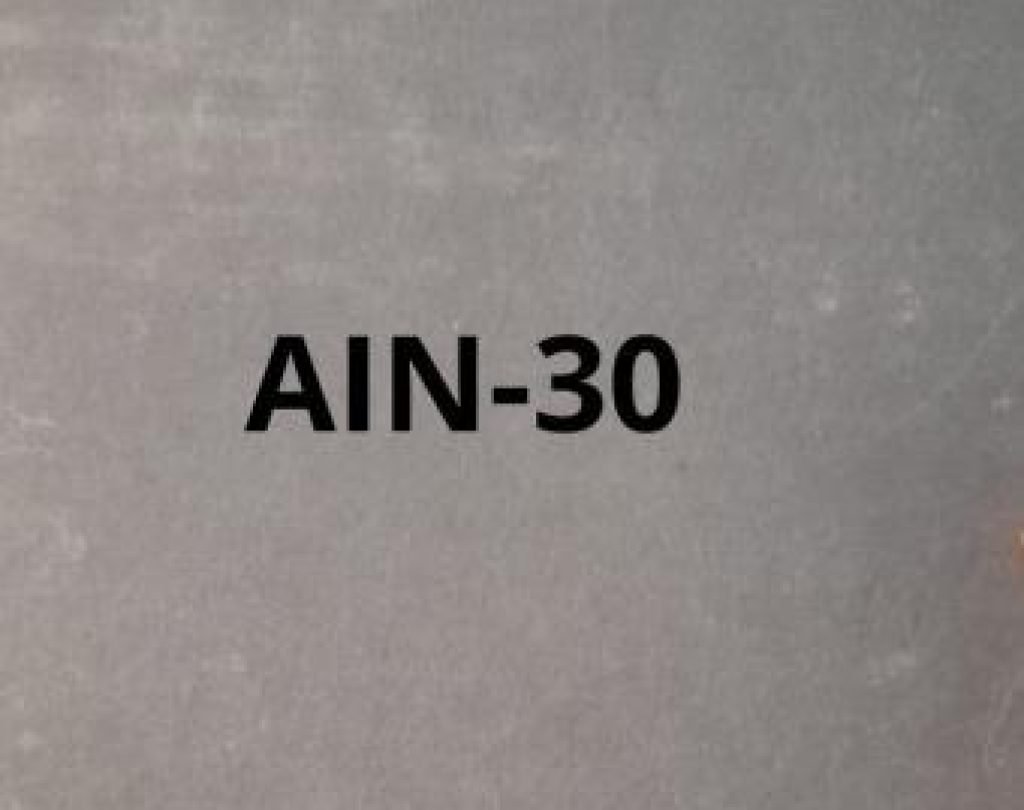

AIN - 30
Cellulose Jointings (Grade : AIN-30)
Non Asbestos Soft Gasket Material
| S.No. | Particular | – | AIN-30 |
| 1 | Density (gms/cc) | – | 1.15 – 1.25 |
| 2 | Tensile Strength (kg/cm²) | (Minimum) | 120 |
| 3 | Compressibility at 1000 psi(%) | – | 10-20 |
| 4 | Recovery (%) | (Minimum) | 30 |
| 5 | Loss on Ignition at 800 °C(%) | (Maximum) | N.A |
| 6 | After immersion in ASTM Oil No. 3 for 5 Hrs. @ 150 °C | – | – |
| Weight increase (%) | (Maximum) | 40 | |
| Thickness increase (%) | (Maximum) | 20 | |
| 7 | After immersion in ASTM Fuel B for 5 Hrs. | – | – |
| Weight increase (%) | (Maximum) | 40 | |
| Thickness increase (%) | (Maximum) | 20 | |
| 8 | Dimensions | – | – |
| (a) Thickness | – | 0.5 mm to 1.5 mm | |
| (b) Thickness Variations | (1) 0.5mm – 0.9mm (2) 1.0mm – 1.5mm | (1) Rolls of 1200mm width (2) In sheets of 1200mm X 1000mm | |
| (c) Thickness Tolerance | 0.50mm to 1.5mm ± 10% | ||
| 9 | ASTM Specification Compliance | F333266E54M5 |
Overview & Challenge
• Medium density material made with high quality soft wood pulp and Nitrile rubber binders.
• Ideal for use as sealing material against Oil and Fuel leakage in areas such as carburetors, pumps , pipelines etc.
• Suitable for temprature upto 150°C
• Available in Grey color
Why Choose AIN - 30?
AI – 30 offers a balanced combination of performance, affordability, and reliability.
It is especially suited for OEM and maintenance applications where standard sealing is required without the added cost of high-density or premium-grade jointing materials.
