THERMOLITE 606

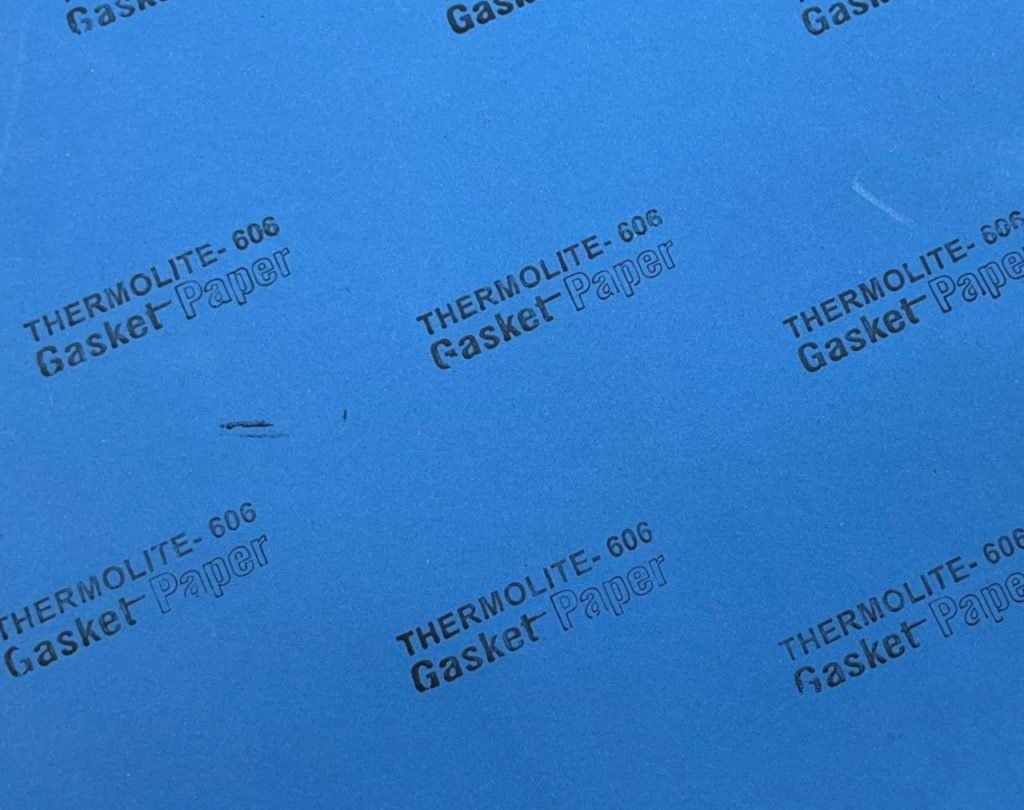

Cellulose Jointings (Grade : THERMOLITE 606)
Cellulose Jointings (Grade : THERMOLITE 606)
A Non-Asbestos Soft Gasket Material engineered for reliable sealing performance in light and medium-duty applications. Made from high-quality cellulose fibres and advanced binders, THERMOLITE 606 ensures superior compressibility, recovery, and fluid resistance while maintaining dimensional stability.
| S.No. | Particular | – | THERMOLITE 606 |
| 1 | Density (gms/cc) | – | 1.05 ± 0.05 |
| 2 | Tensile Strength (kg/cm²) | (Minimum) | 125 |
| 3 | Compressibility at 1000 psi(%) | – | 15-30 |
| 4 | Recovery (%) | (Minimum) | 35 |
| 5 | After immersion in ASTM Oil No. 3 for 22 Hrs. @ 21 – 29 °C | – | – |
| Weight increase (%) | (Maximum) | 45 | |
| Thickness increase (%) | (Maximum) | 10 | |
| 6 | After immersion in ASTM Fuel B for 22 Hrs. @ 21 – 29 °C | – | – |
| Weight increase (%) | (Maximum) | 40 | |
| Thickness increase (%) | (Maximum) | 10 | |
| 7 | After immersion in Water for 22 Hrs. @ 21 – 29 °C | – | – |
| Weight increase (%) | (Maximum) | 50 | |
| Thickness increase (%) | (Maximum) | 30 | |
| 8 | Dimensions | – | – |
| (a) Thickness | – | 0.25 mm to 1.50 mm | |
| (b) Size | (1) 0.25mm – 0.9mm (2) 1.0mm – 1.5mm | (1) Rolls of 1200mm width (2) In sheets of 1200mm X 1000mm | |
| (c) Thickness Tolerance | 0.25mm ± 0.08mm 0.40mm to 1.50mm ± 10% | ||
| 9 | ASTM Specification Compliance | F334166E52M5 |
Overview & Challenge
• Low density material made with high quality soft wood pulp and Nitrile rubber binders.
• Ideal for use as sealing material against Oil and Fuel leakage in areas such as carburetors, pumps , pipelines etc.
• Suitable for temprature upto 150°C
• Available in Blue & Black color
Why Choose THERMOLITE 606?
THERMOLITE 606 is a high-performance Non-Asbestos Soft Gasket Material designed for safe, reliable, and durable sealing across a wide range of industrial applications. Crafted from premium cellulose fibres and advanced binders, it combines mechanical strength, flexibility, and fluid resistance to deliver consistent performance.
